Packaging Specification Glossary

In the process of creating packaging mock-ups, Design Dept. will include information on each packaging specifications in the artwork as per the standard templates here: Z:\Shared drives\AdvaCare Marketing Control\Marketing Manuals\AdvaCare Packaging\AW Template
This glossary is intended for reference of the company’s standard packaging specification and provide example of each specification.

GENERAL:

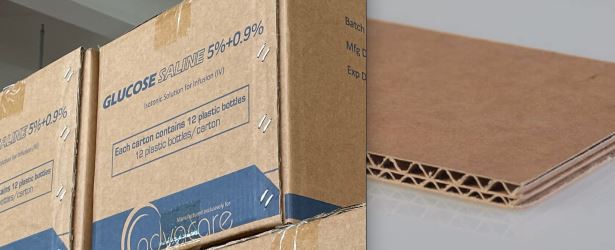

1) CARTON

• Material: 5-layer corrugate paper
  A sturdy box for transport use made of corrugated paperboard in 5-layers.

PHARMACEUTICALS:

2) BOX

Material: 350g white-white cardboard, folding box board
Paperboard white on both sides, to be printed on one side, folded and glued for retail purpose.

Coating:

• Small boxes (up to 50 blisters): Aqueous Coating
  Paper coating that provides a medium-gloss, satin, or soft touch finish.
• Large boxes (most commonly 100 blisters): film coated, glossy
  Paper coating that provides a high-gloss, silky, smooth touch finish.

• Box Closure: Lock Bottom / Reverse Tuck Box / Straight Tuck Box
  Different top and bottom flap designs to provide different box closures.

3) BLISTER

• Material: Alu+PVC / Alu+Alu + 0.3-0.5mm
  Strip providing tamper-proof product seals generally used in tablets, capsules, and softgels.

4) INSERT

• Material: 70g double offset paper
  Standard front-back printing in color or black and white without coating.

5) LABEL

• Material: 80g, film coated
  Standard colored printing on one side with light gloss.

6) TUBE

• Material: Aluminum / Plastic / Aluminum + Plastic
  Container for topical products.

7) AMPOULE PRINT

• Print Type: Ceramic
  Glass printing with texture of printed text.

MEDICAL DEVICES:

1) BOX

• Coating: film-coated, glossy
  Paper coating that provides a high-gloss, silky, smooth touch finish.
• Material: 350g white-white cardboard, folding box board / corrugated cardboard
  White-white cardboard used in smaller/lighter items. Corrugated cardboard used in bulkier/heavier items.

• Box Closure: Lock Bottom, Reverse Tuck Box, Straight Tuck Box
  Different top and bottom flap designs to provide different box closures.

2) INSERT

• Material: 70g double offset paper / 157g coated paper:
  70g double offset paper: Standard front-back printing in color or black and white without coating for standard product inserts.
  157g coated paper: glossy paper generally used in booklet-type inserts.

3) LABEL

• Material: 80g, film coated
  Standard colored printing on one side with light gloss.

4) SACHET

• Material Specification: Aluminum / Plastic
  Pack consisting of two printed layers of aluminum/plastic heat-pressed on 4 ends to provide closure.

VETERINARY:

1) BOX

• Material: 350g white-white cardboard
  Paperboard white on both sides, to be printed on one side, laminated, folded and glued for retail purpose.
• Coating: film coated, glossy
  Paper coating that provides a high-gloss, silky, smooth touch finish.

• Box Closure: Lock Bottom, Reverse Tuck Box, Straight Tuck Box
  Different top and bottom flap designs to provide different box closures.

2) BLISTER

• Material: Alu+PVC + 0.3-0.5mm
  Strip providing tamper-proof product seals generally used in tablets and boluses.

3) INSERT

• Material: 70g double offset paper
  Standard front-back printing in color or black and white without coating.

4) LABEL

• Material: 80g, film coated
  Standard colored printing on one side with light gloss.

5) SACHET

• Material Specification: Aluminum / Plastic
  Pack consisting of two printed or labeled layers of aluminum/plastic heat-pressed on 4 ends to provide closure.

SUPPLEMENTS:

PREMIUM SUPPLEMENTS

1) BOX

• Material: 350g silver-based folding cardboard box
  Printed on one side with silver base.
• Coating: film-coated with raised lettering and UV
  Film-coated with raised lettering and UV effects:

• Box Closure: Lock Bottom, Reverse Tuck Box, Straight Tuck Box
  Different top and bottom flap designs to provide different box closures.

2) LABEL

• Material: silver-based paper, thickness: 0.07mm, coated with glossy varnish and shiny effects
  Printed, thin, and glossy foil-like label with shiny effects on certain design elements.

3) INSERT

• Material: 105g color print
  Color printed glossy paper.

NON-PREMIUM SUPPLEMENTS

1) BOX

Material:

• Boxes with large bottles (500cc/750cc): 400g white-white folding cardboard box
• Boxes with blisters/small bottles: 350g white-white folding cardboard box
  Paperboard white on both sides, to be printed on one side, laminated, folded and glued for retail purpose.

Coating: film coated, glossy
Paper coating that provides a high-gloss, silky, smooth touch finish.

• Box Closure: Lock Bottom, Reverse Tuck Box, Straight Tuck Box
  Different top and bottom flap designs to provide different box closures.

2) LABEL

• Material: 80g, film coated
  Standard colored printing on one side with light gloss.
  OR
• Material: silver-based paper, thickness: 0.07mm, coated with glossy varnish and shiny effects
  Printed, thin, and glossy foil-like label with shiny effects on certain design elements.

3) INSERT

• Material: 70g double offset paper
  Standard front-back printing in color or black and white without coating.

GUMMIES (Kids)

1) BOX

• Material: 400g white-white folding cardboard box with window display
  Thicker printed box with white base and a fraction of two sides cut for display of gummy bottles, also color printed on the inside top closure.

• Coating: film-coated, glossy
  Paper coating that provides a high-gloss, silky, smooth touch finish.

• Box Closure: Lock Bottom Box
  Locks in the bottom for additional weight support.

2) LABEL

• Material: 80g clear PP with bronzing effects
  Printed transparent smooth plastic layer with bronzing effects on certain elements.

PET SUPPLEMENTS:

1) LABEL

• Material: 80g white-based, matte coated with UV effects
  Standard colored printing on one side with matte, soft touch coating and UV effects on certain elements.
